SiFive社のRISC-Vボード HiFive Unleashedを使ってみる (2. Buildroot Linuxのビルド)

f:id:msyksphinz:20190419223924p:plain
HiFive Unleashed 評価ボード

HiFive Unleashedは、特に何もすることなくデフォルトで付属しているBuildroot Linuxを使ってLinuxを起動することができる。 しかし、これではあまり面白くないので、RISC-VのSDKを使って自分でLinuxをビルドし、カスタマイズするための環境を作ってみる。

RISC-V Linuxのカスタマイズを行うためには、SiFive社が提供しているFreedom-u-sdkを使用する。 このSDKGitHub上で配布されており、HiFive Unleashedで動作セする64ビットLinuxをビルドする環境も入っている。

# リポジトリのすべてをダウンロードしてしまうととても重いので、最新のリリースのみダウンロードする。
git clone https://github.com/sifive/freedom-u-sdk --depth 1 -b hifiveu-2.0-alpha --recurse-submodules
cd freedom-u-sdk
unset LD_LIBRARY_PATH
make -j$(nprocs)

必要に応じてMakeには並列数を挿入する。コンパイルにはしばらく時間がかかった。

ビルドが完了すると、マイクロSDカードにLinuxのイメージを書き込む。 マイクロSDカードを用意して、まずはフォーマットする。 マイクロSDカードをPCに差し込むと、まずは認識されているデバイスを確認する。

lsusb
NAME   MAJ:MIN RM   SIZE RO TYPE MOUNTPOINT
...
sda      8:0    0   500G  0 disk
└─sda1   8:1    0   500G  0 part /
sdc      8:32   1  14.8G  0 disk
├─sdc1   8:33   1    31M  0 part /mnt/sdcard
├─sdc2   8:34   1   5.5G  0 part
├─sdc3   8:35   1 460.5K  0 part
└─sdc4   8:36   1    38K  0 part

マイクロSDカードが/dev/sdcに認識されていることが分かる。そこで、gdiskを使ってSDカードの初期化を行う。

sudo gdisk /dev/sdc
$ sudo gdisk /dev/sdc
[sudo] password for msyksphinz:
GPT fdisk (gdisk) version 1.0.3

Partition table scan:
  MBR: protective
  BSD: not present
  APM: not present
  GPT: present

Found valid GPT with protective MBR; using GPT.
Command (? for help): p  # デフォルトのパーティション情報を表示。次にパーティションをすべて削除する。
Disk /dev/sdc: 30965760 sectors, 14.8 GiB
Model: Mini SD Reader
Sector size (logical/physical): 512/512 bytes
Disk identifier (GUID): 81BDE1E5-C39D-4976-94A4-56C3AEA1E352
Partition table holds up to 128 entries
Main partition table begins at sector 2 and ends at sector 33
First usable sector is 34, last usable sector is 30965726
Partitions will be aligned on 4-sector boundaries
Total free space is 19446682 sectors (9.3 GiB)

Number  Start (sector)    End (sector)  Size       Code  Name
   1            2048           65502   31.0 MiB    0700  Vfat Boot
   2          264192        11718750   5.5 GiB     8300  root
   3            1100            2020   460.5 KiB   FFFF  uboot
   4            1024            1099   38.0 KiB    FFFF  uboot-env

Command (? for help): d  # パーティション2を削除
Partition number (1-4): 2

Command (? for help): d  # パーティション3を削除
Partition number (1-4): 3

Command (? for help): d  # パーティション4を削除
Partition number (1-4): 4

Command (? for help): o  # すべてのパーティションの情報を削除
This option deletes all partitions and creates a new protective MBR.
Proceed? (Y/N): Y # Yesを選択する

Command (? for help): w  # ディスクへパーティション情報を書き込む。

Final checks complete. About to write GPT data. THIS WILL OVERWRITE EXISTING
PARTITIONS!!

Do you want to proceed? (Y/N): Y
OK; writing new GUID partition table (GPT) to /dev/sdc.
Warning: The kernel is still using the old partition table.
The new table will be used at the next reboot or after you
run partprobe(8) or kpartx(8)
The operation has completed successfully.

SDカードへのフォーマットが完了すると、次にLinuxの情報をSDカードに書き込む。 これはmakeコマンドで実行できる。 以下のようにして書き込んだ。。

sudo make DISK=/dev/sdc format-boot-loader
$ sudo make DISK=/dev/sdc format-boot-loader
/sbin/sgdisk --clear  \
        --new=1:2048:65502  --change-name=1:"Vfat Boot" --typecode=1:EBD0A0A2-B9E5-4433-87C0-68B6B72699C7   \
        --new=2:264192:11718750 --change-name=2:root    --typecode=2:0FC63DAF-8483-4772-8E79-3D69D8477DE4 \
        --new=3:1100:2020   --change-name=3:uboot       --typecode=3:5B193300-FC78-40CD-8002-E86C45580B47 \
        --new=4:1024:1099  --change-name=4:uboot-env    --typecode=4:a09354ac-cd63-11e8-9aff-70b3d592f0fa \
        /dev/sdc
Setting name!
partNum is 0
Setting name!
partNum is 1
Setting name!
partNum is 2
Setting name!
partNum is 3
Warning: The kernel is still using the old partition table.
The new table will be used at the next reboot or after you
run partprobe(8) or kpartx(8)
The operation has completed successfully.
/sbin/partprobe
dd if=/home/msyksphinz/work/riscv/freedom-u-sdk/work/HiFive_U-Boot/u-boot.bin of=/dev/sdc3 bs=4096
113+1 records in
113+1 records out
464973 bytes (465 kB, 454 KiB) copied, 0.310722 s, 1.5 MB/s
dd if=/home/msyksphinz/work/riscv/freedom-u-sdk/work/hifive-unleashed-vfat.part of=/dev/sdc1 bs=4096
7931+1 records in
7931+1 records out
32488448 bytes (32 MB, 31 MiB) copied, 0.0255919 s, 1.3 GB/s

マイクロSDカードの構築が完了しました。 HiFive Unleashedのボードに差し込んで起動する。このとき、HiFive Unleashedのディップス一致を1011に設定する必要があった。

U-Boot 2018.09-gca05d26 (Apr 20 2019 - 01:40:29 +0900)

DRAM:  2 GiB
MMC:
In:    serial
Out:   serial
Err:   serial
Net:   gmac0
Hit any key to stop autoboot:  0
MMC_SPI: 0 at 0:1 hz 20000000 mode 0

Partition Map for MMC device 0  --   Partition Type: EFI

Part    Start LBA       End LBA         Name
        Attributes
        Type GUID
...
## Starting application at 0x80000000 ...
bbl loader

                SIFIVE, INC.

         5555555555555555555555555
        5555                   5555
       5555                     5555
      5555                       5555
     5555       5555555555555555555555
    5555       555555555555555555555555
   5555                             5555
  5555                               5555
 5555                                 5555
5555555555555555555555555555          55555
 55555           555555555           55555
   55555           55555           55555
     55555           5           55555
       55555                   55555
         55555               55555
           55555           55555
             55555       55555
               55555   55555
                 555555555
                   55555
                     5

           SiFive RISC-V Core IP
[    0.000000] OF: fdt: Ignoring memory range 0x80000000 - 0x80200000
[    0.000000] Linux version 4.19.0-sifive-1+ (msyksphinz@msyksphinz) (gcc version 8.3.0 (Buildroot 2019.02-07449-g4eddd28f99))
...
[    2.080000] Run /init as init process
[    2.090000] mmc0: new SDHC card on SPI
[    2.100000] mmcblk0: mmc0:0000 SPCC 14.8 GiB
[    2.130000]  mmcblk0: p1 p2 p3 p4
Starting syslogd: OK
Starting klogd: OK
Starting mdev...
modprobe: can't change directory to '/lib/modules': No such file or directory
Initializing random number generator... [    3.020000] random: dd: uninitialized urandom read (512 bytes read)
done.
Starting network: [    3.090000] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready
udhcpc: started, v1.29.3
udhcpc: sending discover
[    6.240000] macb 10090000.ethernet eth0: link up (100/Full)
[    6.240000] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
udhcpc: sending discover
udhcpc: sending select for 192.168.11.17
udhcpc: lease of 192.168.11.17 obtained, lease time 172800
deleting routers
adding dns 192.168.11.1
OK
Starting dropbear sshd: [    6.540000] random: dropbear: uninitialized urandom read (32 bytes read)
OK

Welcome to Buildroot
buildroot login: root
Password:
#

ログイン画面が現れた。ブート成功。

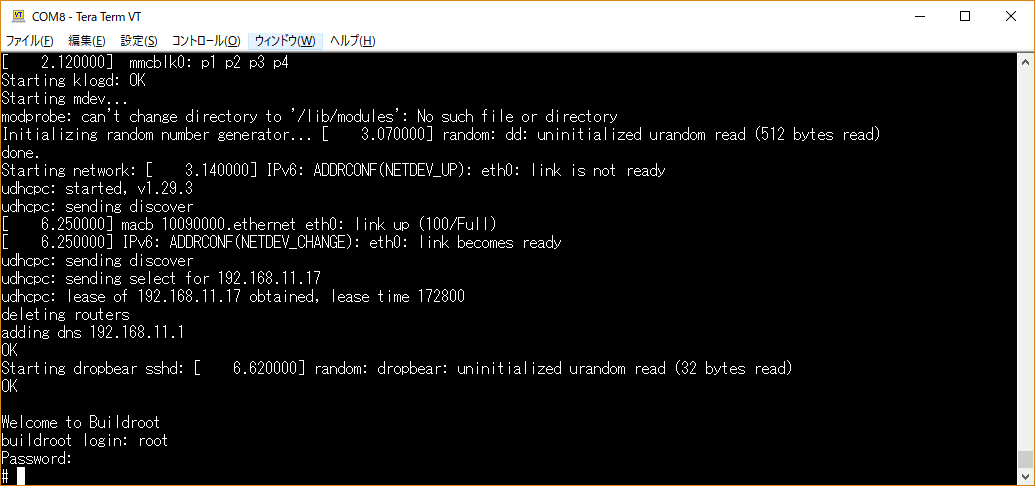

f:id:msyksphinz:20190420140522p:plain
Freedom-u-sdkからビルドしたLinuxを、HiFive Unleashedで立ち上げる。
